PHM Series Two-Platen Machines
Hydro-mechanical two-platen clamping for large moulds and deep-draw work.
- Clamping force
- 160 – 350 T
- Max. daylight
- 1225 – 1650 mm
- Shot weight (PS)
- 343 – 1492 g
Benefits at a Glance
Why the PHM series
- 01Balanced clamping force, avoiding corner flashes
- 02Moving platen on linear motion guide, avoiding guide pin wear
- 03Extra long opening with low floor space requirement
- 04Lower oil handling than ram or direct locking, so lower power draw
- 05Extra long ejector stroke and force
- 06Clamp force and opening stroke can be increased on demand
The Machine
Specified to the part, not the price list

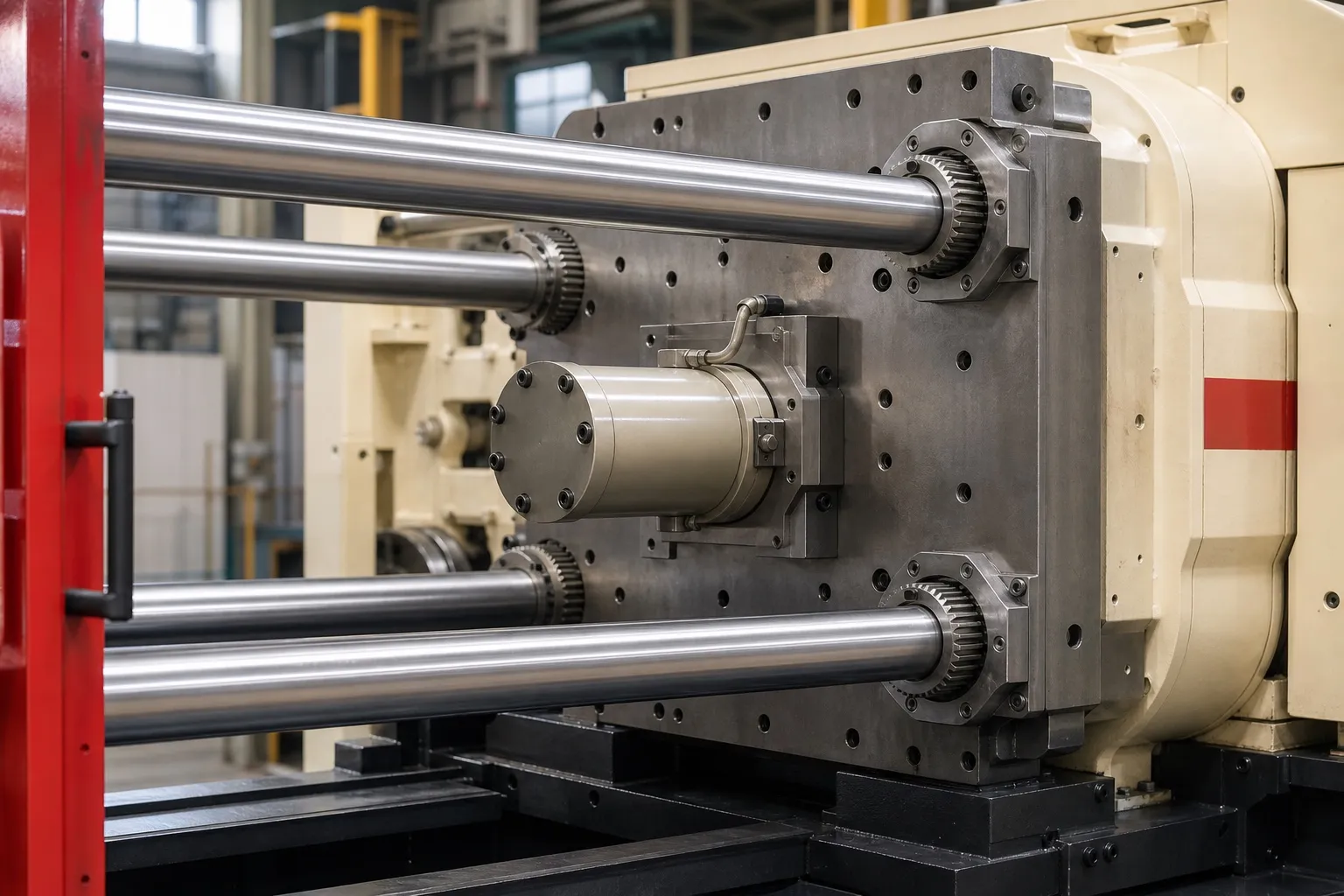

The PHM series replaces the toggle with a two-platen hydro-mechanical clamp. That removes the rear linkage housing, so the machine carries a much larger mould and a far longer opening stroke in less floor space than an equivalent toggle machine.
It is the series for pallets, crates, bins, large automotive mouldings and any part whose mould will not fit between the tie bars of a conventional machine.
Technical Data
Published catalogue figures
Two build variants (A / B) are offered per model; injection-side figures below span both.
| Model | Unit | PHM-160 | PHM-200 | PHM-250 | PHM-350 |
|---|---|---|---|---|---|
| Locking unit | |||||
| Mould clamping force | Tons | 160 | 200 | 250 | 350 |
| Mould clamping stroke | mm | 1000 | 1100 | 1150 | 1350 |
| Mould thickness (min – max) | mm | 225 – 645 | 240 – 655 | 250 – 700 | 300 – 800 |
| Max. daylight opening | mm | 1225 | 1340 | 1400 | 1650 |
| Space between tie bars (H × V) | mm | 460 × 440 | 560 × 540 | 640 × 640 | 720 × 720 |
| Platen size | mm | 800 × 815 | 935 × 960 | 1080 × 1128 | 1195 × 1250 |
| Injection unit | |||||
| Screw diameter | mm | 45 – 50 | 55 – 60 | 65 – 70 | 75 – 80 |
| Max. shot weight (PS) | g | 343 – 424 | 588 – 700 | 836 – 969 | 1311 – 1492 |
| Rate of injection | cc/sec | 143 – 177 | 214 – 254 | 325 – 377 | 406 – 462 |
| Hydraulic ejector | |||||
| Ejector stroke | mm | 150 | 200 | 200 | 250 |
| Ejector force | Tons | 7.5 | 7.5 | 9.5 | 12 |
| General | |||||
| Servo driven pump | kW | 24.1 | 31.4 | 36.1 | 48.2 |
| Heating capacity | kW | 14.5 | 19.2 | 26.1 | 32.8 |
| Total connected load | kW | 38.6 | 50.6 | 62.2 | 81.0 |
| Tank capacity | Litres | 440 | 550 | 770 | 1000 |
Full column-by-column data, including both build variants, is in the series catalogue (PDF).
Where It Runs
Applications
Tell us the component and we will confirm the configuration against it.
