Horizontal Injection Moulding Machines
Toggle-clamp horizontal machines for general-purpose, high-volume moulding.
- Clamping force
- 75 – 200 T
- Shot weight (PS)
- 82 – 556 g
- Connected load
- 17.5 – 48.1 kW
Benefits at a Glance
Why the HZ series
- 01Five-point twin toggle mechanism for balanced clamping
- 02Strong, robust steel platens
- 03Servo-driven pump for lower connected load
- 04Broad mould compatibility across the range
- 05Integrates with robots, pickers and conveyors
- 06Commissioning, spares and operator training included
The Machine
Specified to the part, not the price list

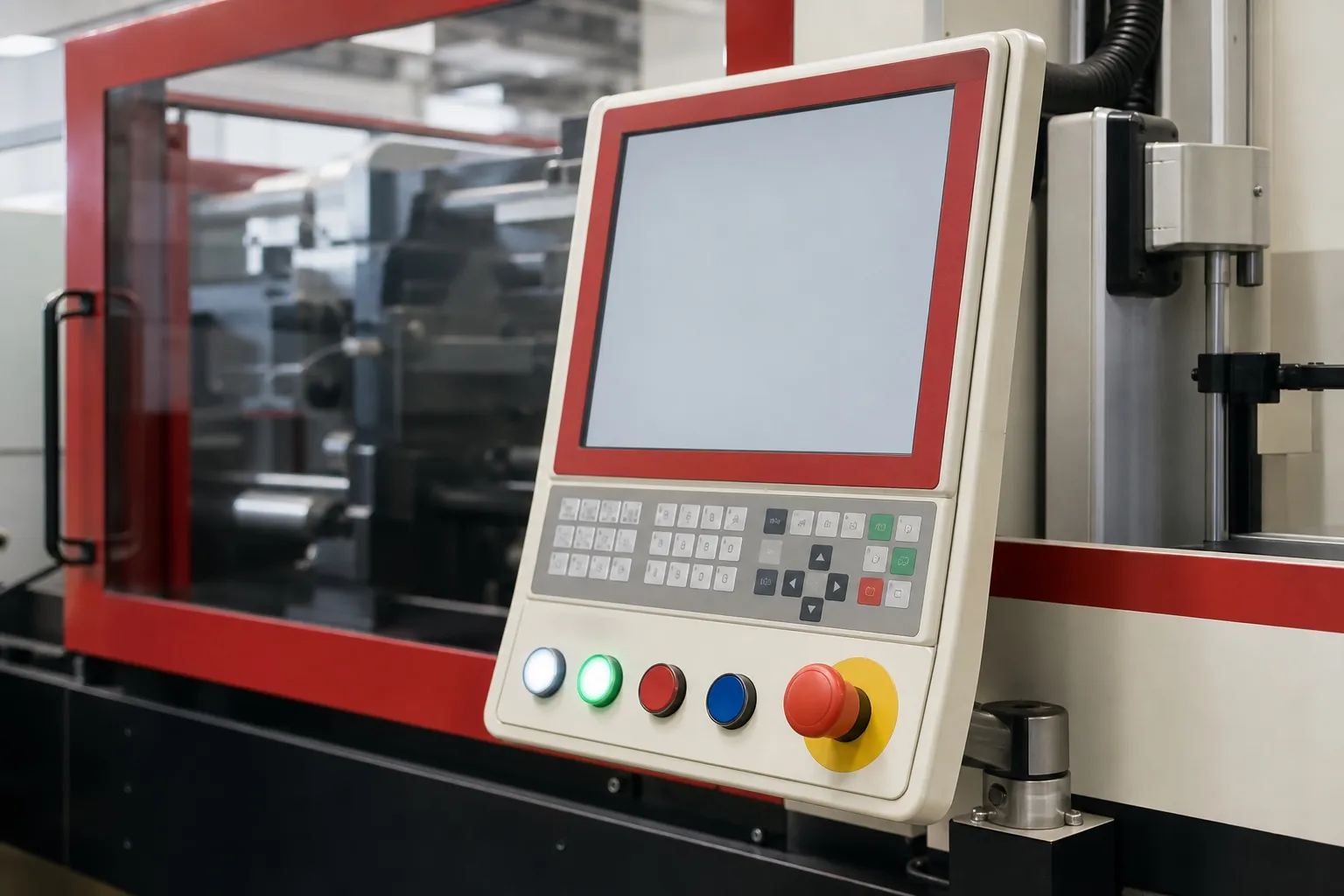

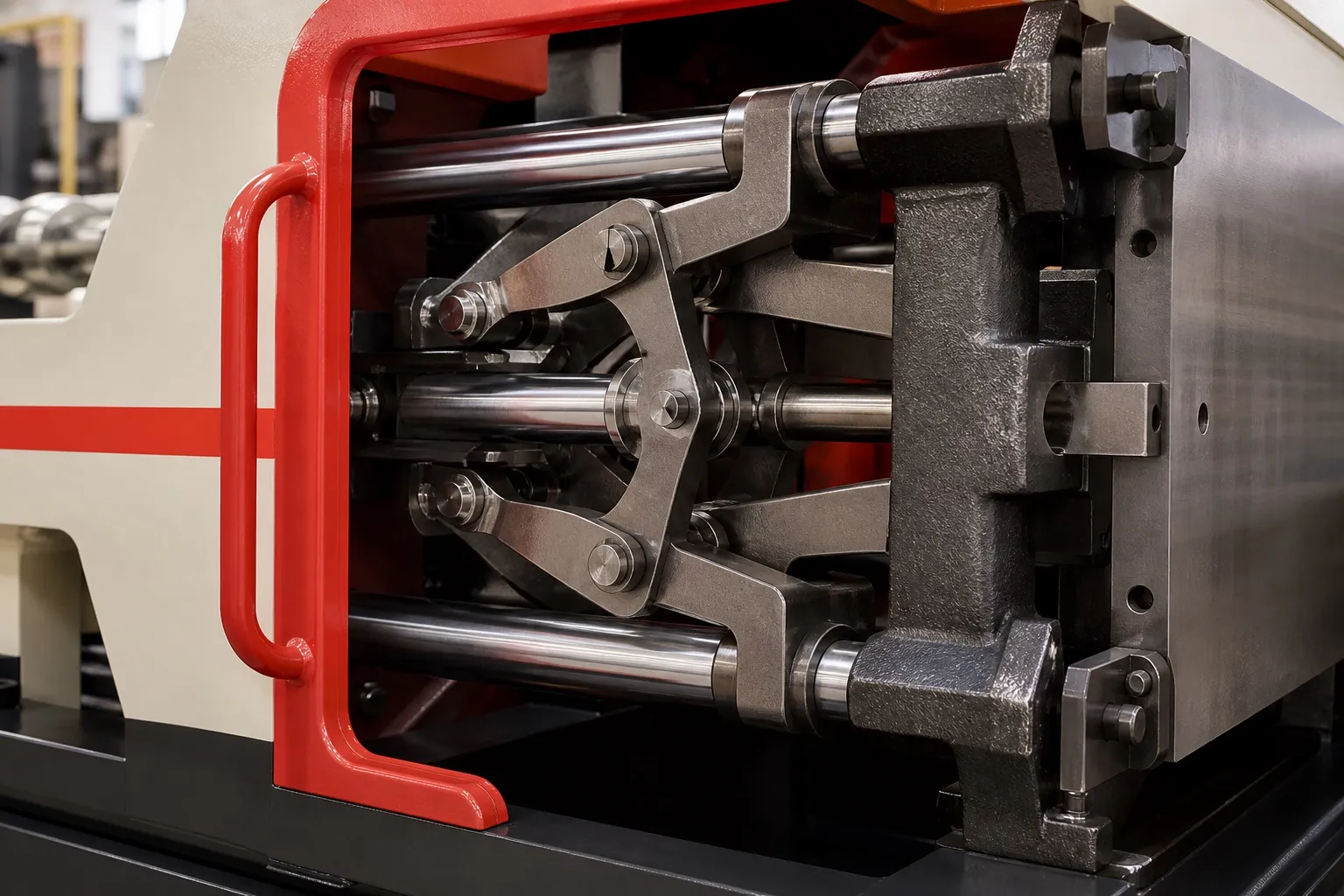

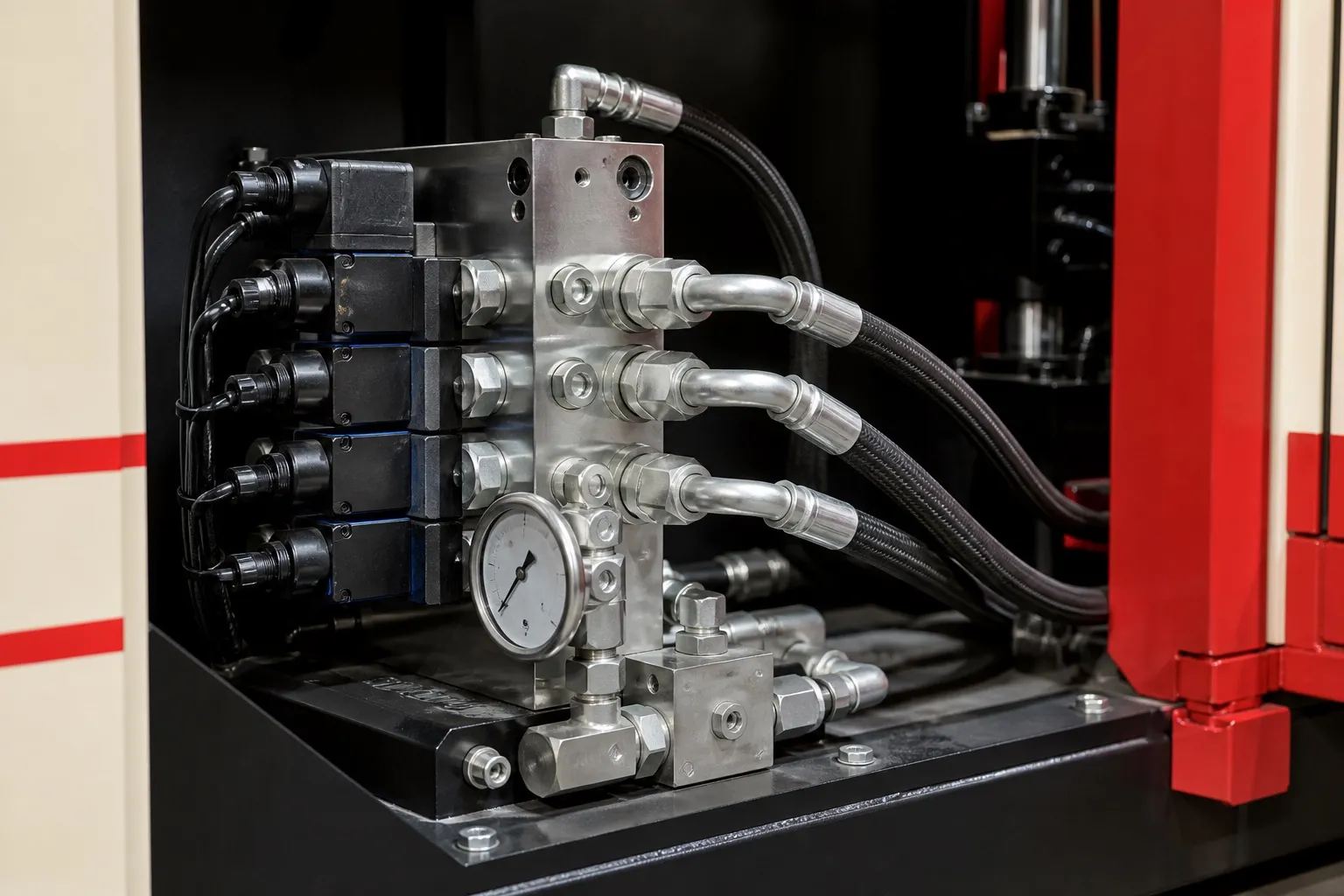

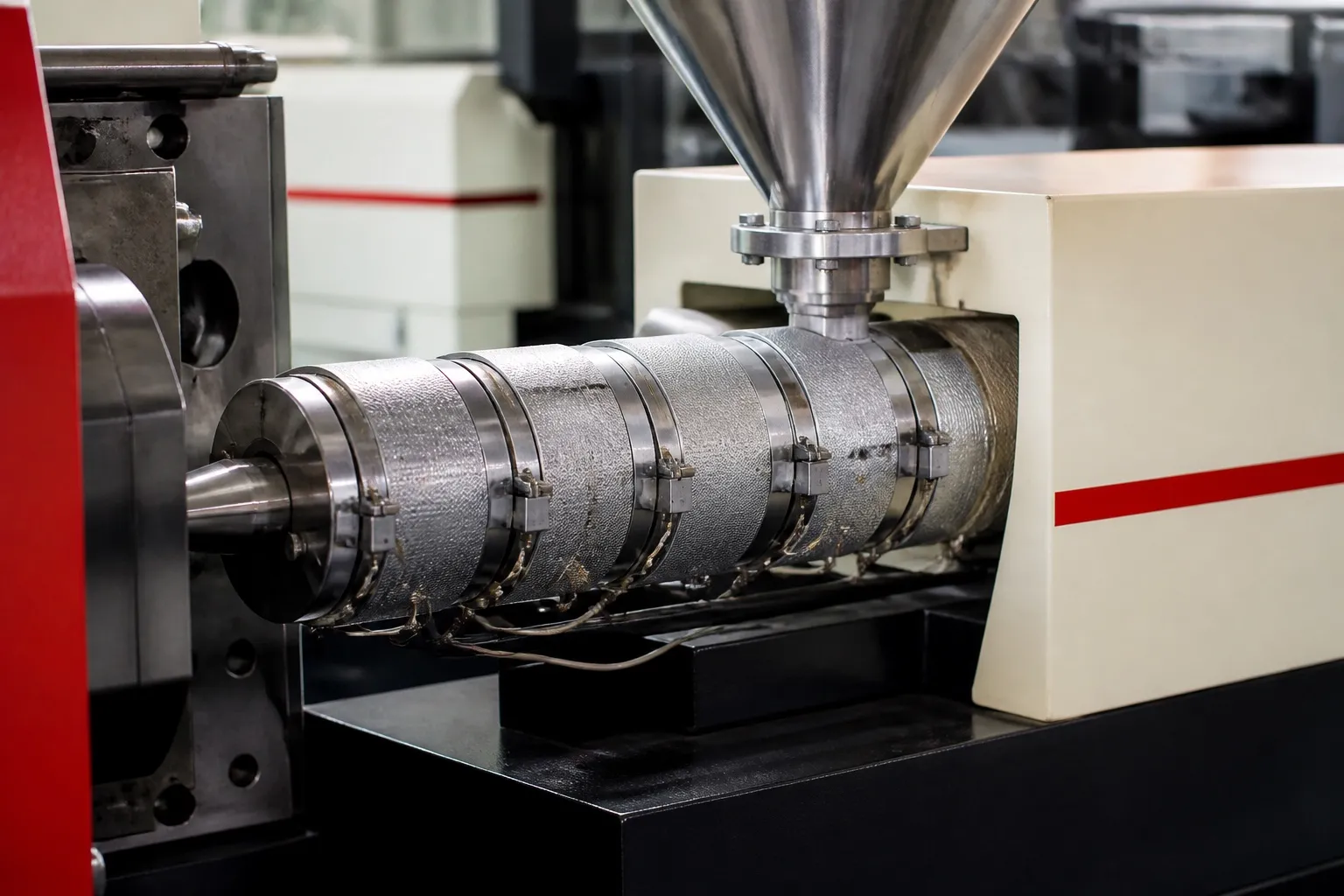

The horizontal programme is the workhorse of the Pratishna range — a five-point twin toggle clamp on linear guides, a servo-driven pump and a horizontal injection unit sized to the shot rather than to the catalogue page.
Machines are configured around the component: clamping force, screw diameter, platen size and daylight are all selected from your part weight, material, mould dimensions and cavity count.
Technical Data
Published catalogue figures
R-Series and H-Series builds are available on most models; injection-side figures below span both.
| Model | Unit | VT-75 | VT-100 | VT-120 | VT-140 | VT-160 | VT-200 |
|---|---|---|---|---|---|---|---|
| Locking unit | |||||||
| Mould clamping force | Tons | 75 | 100 | 120 | 140 | 160 | 200 |
| Mould clamping stroke | mm | 275 | 275 – 300 | 300 – 340 | 340 – 375 | 375 – 450 | 460 |
| Max. daylight opening | mm | 625 | 675 – 700 | 750 – 790 | 840 – 875 | 900 – 975 | 1035 |
| Space between tie bars (H × V) | mm | 350 × 323 | 376 × 326 | 410 × 345 | 440 × 420 | 460 × 421 | 520 × 478 |
| Platen size | mm | 550 × 510 | 590 × 540 | 640 × 570 | 675 × 640 | 705 × 650 | 775 × 770 |
| Injection unit | |||||||
| Screw diameter | mm | 27 – 32 | 27 – 32 | 32 – 35 | 35 – 38 | 40 – 45 | 45 – 55 |
| Max. shot weight (PS) | g | 82 – 116 | 82 – 116 | 126 – 151 | 186 – 219 | 249 – 315 | 343 – 556 |
| General | |||||||
| Total connected load | kW | 17.5 | 17.5 – 18.5 | 18.5 – 23.7 | 23.7 – 31.8 | 31.8 – 38.6 | 48.1 |
| Tank capacity | Litres | 180 | 230 – 260 | 260 – 350 | 350 – 410 | 410 – 490 | 550 |
Full column-by-column data, including both build variants, is in the series catalogue (PDF).
Where It Runs
Applications
Tell us the component and we will confirm the configuration against it.
Also in the Programme
Other machine series
Talk to Our Engineers
Planning a New Injection Moulding Project?
Share your component, material, mould and production target. Our engineering team will help you identify the right machine configuration.
